QGS

QGStrue blue warranty

The Quincy QGS series is an economically priced rotary screw compressor package that can be used in a wide range of applications. All QGS units from 5 horsepower to 30 horsepower are belt driven and include an auto tensioning device that provides ease of maintenance and long belt life. All QGS units from 40 horsepower to 100 horsepower come with a gear driven transmission. The models can be configured as basic units or can be equipped with some basic options to best fit your application. All QGS models have quick-change filter and separator designs that minimize downtime and reduce labor costs associated with machine maintenance. They also have extremely low sound ratings allowing the machines to be placed close to the manufacturing floor.

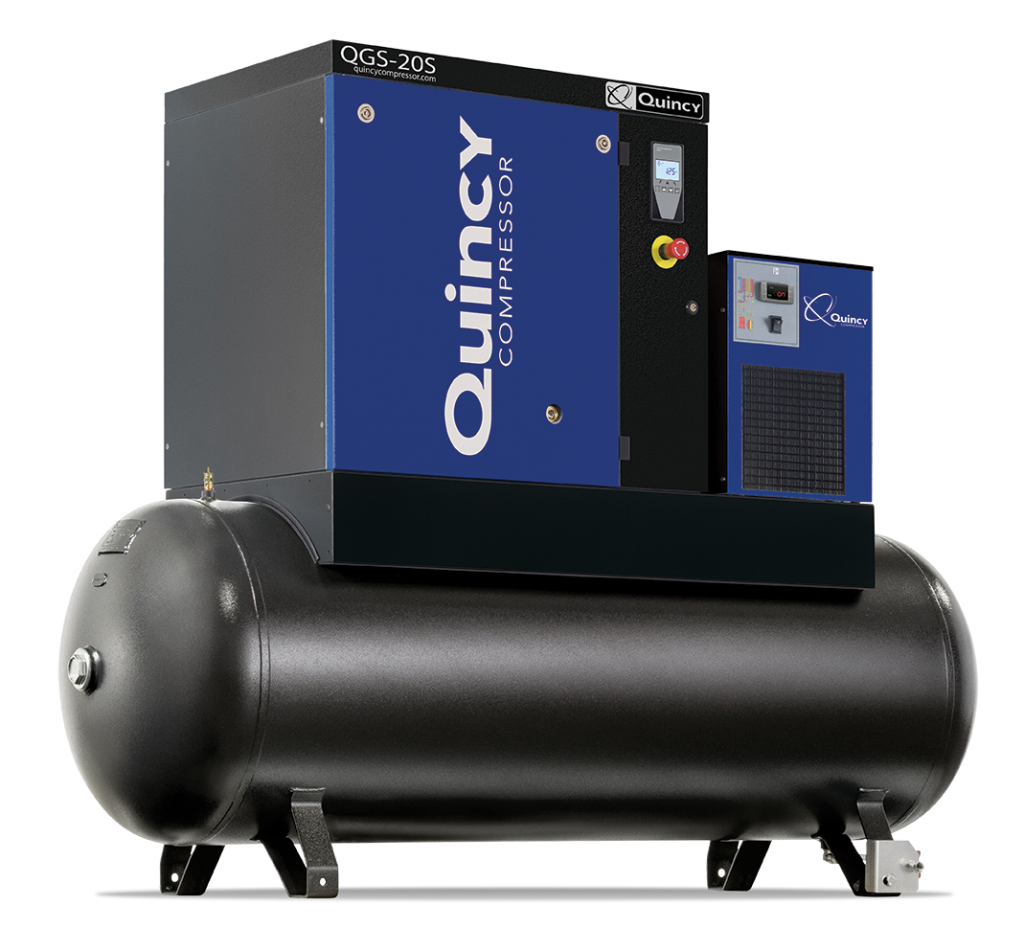

The QGS product line includes 5-30 hp belt screw air compressor models that include a long-life V-belt drive, high-efficiency intake filter and a robust TEFC motor. The standard quiet enclosure is designed to reduce vibration and noise levels. The eight-thousand-hour premium synthetic fuel features a low oil carryover. An integrated dryer and tank mount option is also available.

  • 5-30 hp, Belt Drive
  • 40-100 hp, Gear Drive
  • 16-460 acfm, 125-150 psigQGS-20S-TMD-Left-2-outlined
  • 62-69 dBA
  • Integrated dryer option
  • True Blue 5-Year Warranty

CAGI Data Sheets
